Product
Galvanized Steel Anti-Drone Net
Heavy-duty hot-dip galvanized steel mesh for permanent anti-drone perimeter protection — maximum durability and weather resistance
Galería

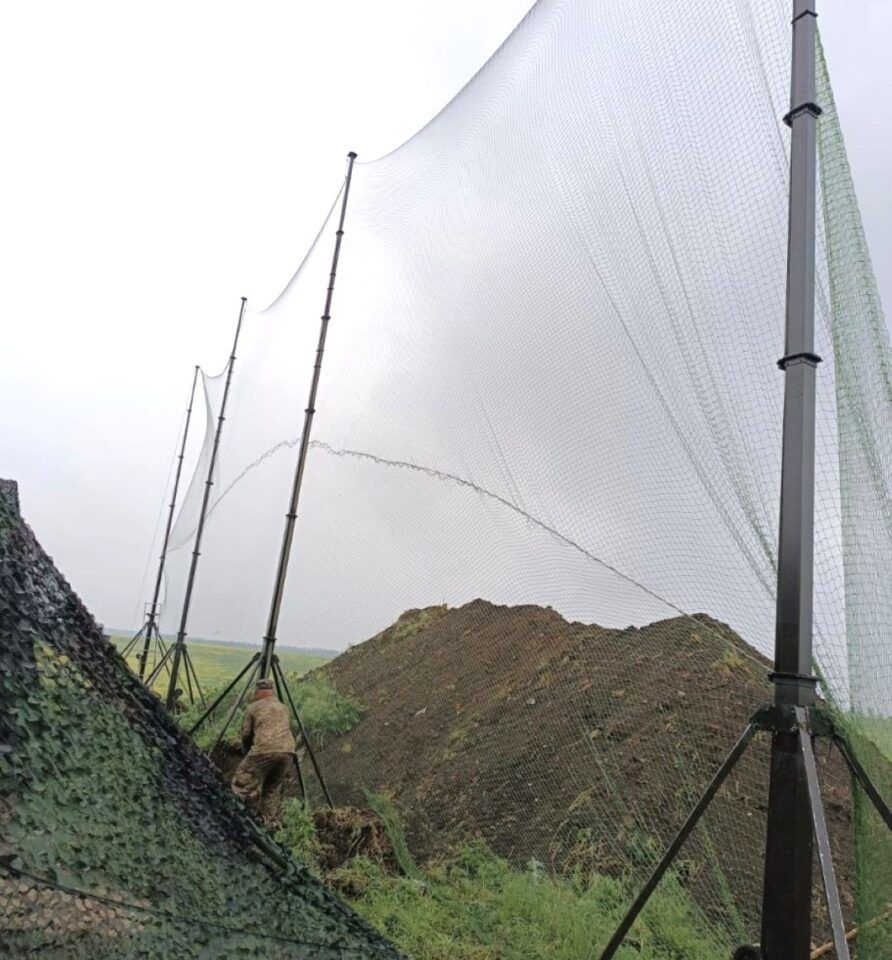

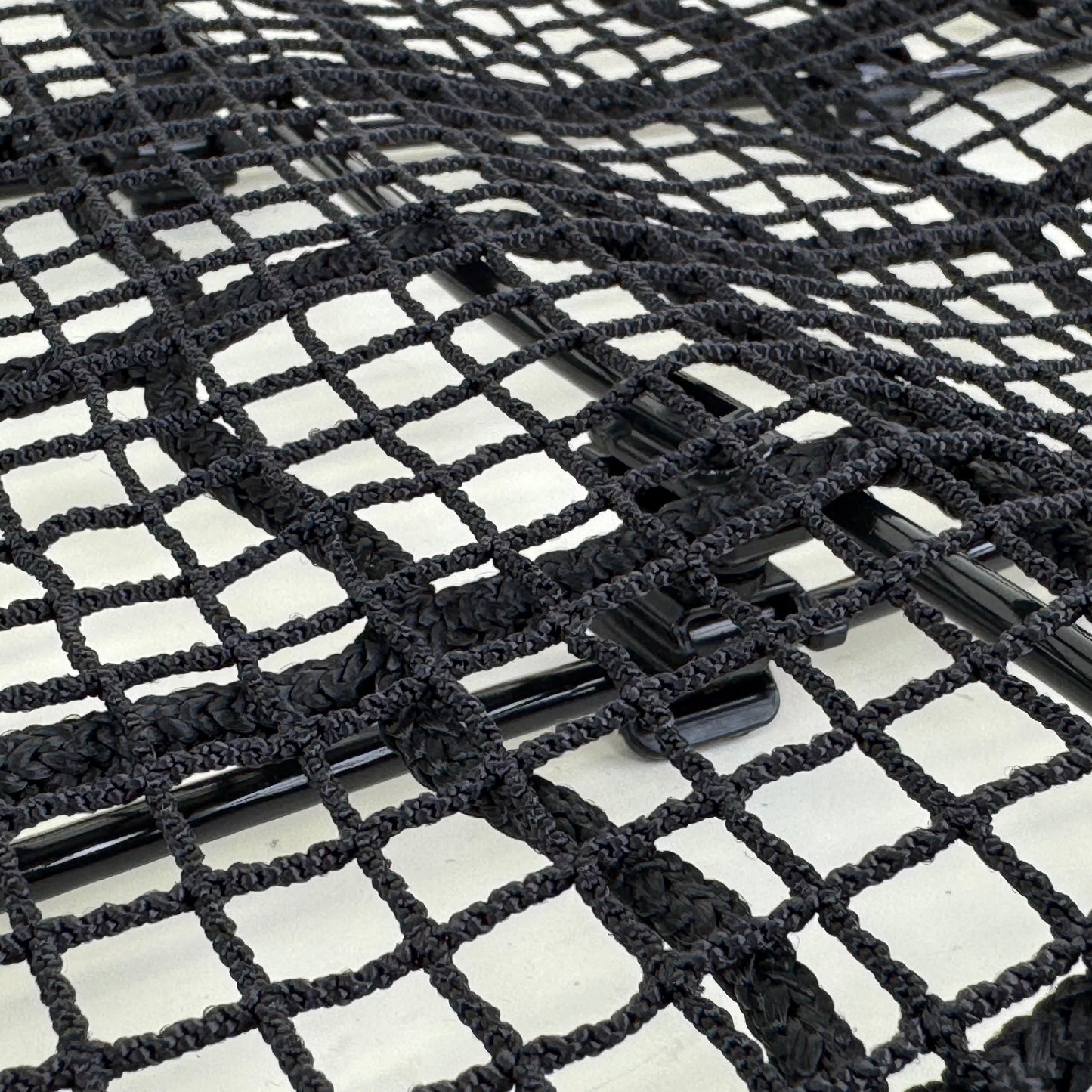

Galvanized Steel Rope Mesh Outdoor Installation

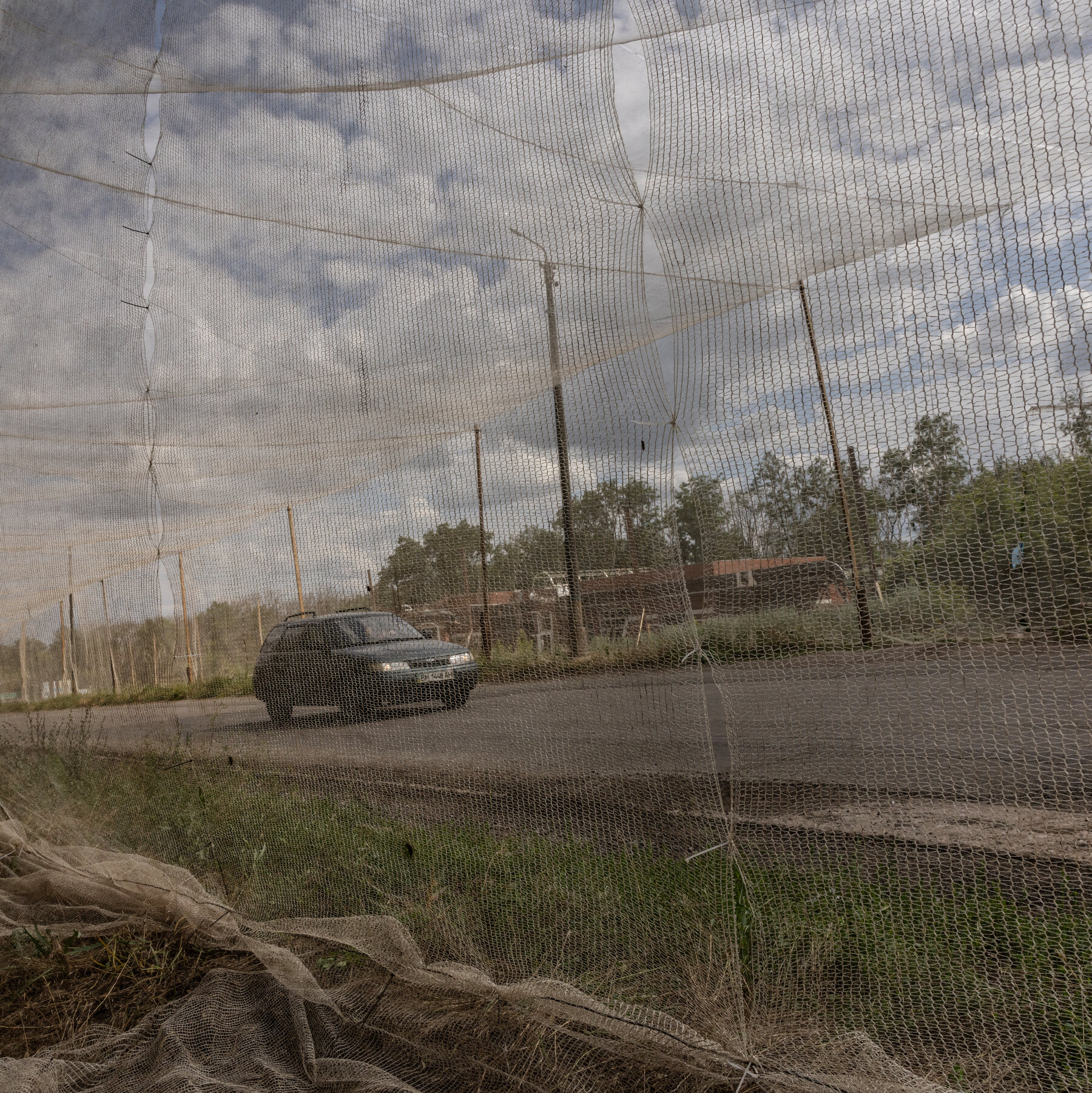

Close-Up of Galvanized Wire Knots and Mesh

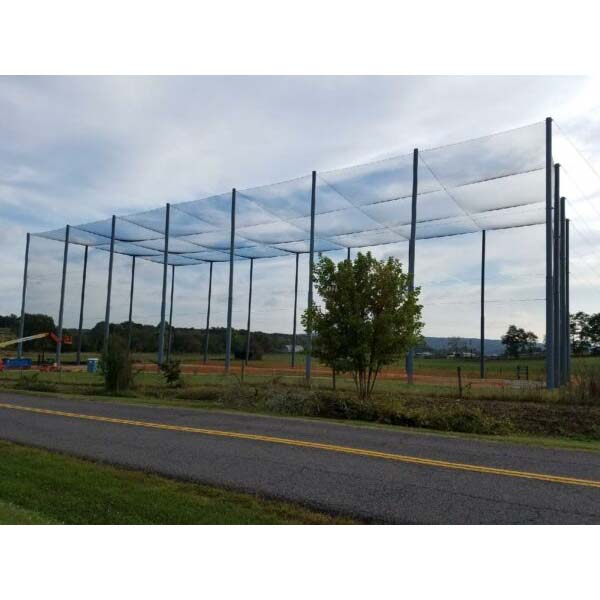

Large-Area Coverage Over Critical InfrastructureManufacturing Quality ControlOverview
Permanent Anti-Drone Protection with Galvanized Steel
The Galvanized Steel Anti-Drone Net (SKU: ADN-HDG-COST) is our flagship permanent perimeter protection solution, engineered for maximum durability in outdoor environments. Constructed from high-tensile steel wire and protected by a hot-dip galvanized (HDG) zinc coating per ASTM A123, this net delivers unmatched resistance to corrosion, UV degradation, and mechanical impact — making it ideal for long-term installations at critical infrastructure sites.
Available in wire diameters from 2.0 mm to 4.0 mm with standard 50×50 mm diamond mesh apertures, the net provides an effective physical barrier against unauthorized UAV incursions while maintaining visibility and airflow. Each panel is precision-welded at every intersection, creating a rigid structure that cannot be cut, torn, or bypassed by small drones. The galvanized coating ensures a service life exceeding 15 years in even the harshest marine or desert environments.
Suitable for airport perimeters, military bases, border fences, prison facilities, and industrial complexes requiring a permanent, maintenance-free anti-drone barrier. The modular panel design enables rapid installation on existing fence structures or freestanding support frameworks, and can be integrated with electronic detection systems for layered C-UAS defense.
Especificaciones
Ficha Técnica
Galvanized Steel Net Dimensions
Standard panel sizes and wire gauge specifications
Dimensiones
Standard panels available in 2.0×3.0m, 2.5×3.0m, and custom sizes up to 6.0×3.0m
| Parameter | Value |
|---|---|
| Material | High-tensile steel wire, hot-dip galvanized (HDG) |
| Wire Diameter | 2.0 mm / 2.5 mm / 3.0 mm / 4.0 mm |
| Mesh Aperture | 50×50 mm (diamond), 40×40 mm optional |
| Tensile Strength | ≥1,500 N/mm² |
| Zinc Coating | ≥610 g/m² (ASTM A123 compliant) |
| Panel Size | 2.0×3.0m / 2.5×3.0m / custom up to 6.0×3.0m |
| Service Life | 15+ years outdoor exposure |
| Certification | ASTM A123, ISO 1461, CE Marked |
Características
Características y Ventajas
Galvanized Steel Net Features
Hot-Dip Galvanized Protection
Full ASTM A123-compliant hot-dip galvanization with minimum 610 g/m² zinc coating. Provides exceptional corrosion resistance in marine, coastal, and desert environments with zero maintenance required.
High Tensile Strength
Steel wire with ≥1,500 N/mm² tensile strength resists cutting, impact from drone collisions, and forced entry attempts. Welded intersections create a rigid monolithic barrier.
Precision Diamond Mesh
Standard 50×50 mm diamond aperture stops drones as small as micro-UAVs while maintaining visibility, airflow, and aesthetic appeal. Custom aperture sizes available for specialized threat profiles.
15+ Year Outdoor Lifespan
Engineered for permanent outdoor installation with verified 15+ year service life. UV-stable, temperature-resistant from -40°C to +80°C, and unaffected by salt spray or industrial pollutants.
Modular Panel System
Pre-fabricated modular panels in standard sizes enable rapid installation on existing fence lines or new support structures. Panels bolt together without specialized welding equipment.
Multi-Layer Integration Ready
Designed for seamless integration with radar systems, RF detectors, and CCTV surveillance as part of a layered C-UAS defense strategy. Mounting brackets for sensors included.
Aplicaciones
Dónde se Instala
Airport Perimeter Security
Permanent runway and terminal anti-drone protection for civil and military airports
Military Base Protection
Forward operating base and equipment area protection from surveillance drones
Prison & Correctional Facilities
Preventing contraband drone deliveries over prison perimeter fences and yards
Border Security
National border fence reinforcement with anti-drone surveillance capability
